20FT Hard Open Top Container

On this 20FT open top, the steel roof lifts off completely and the door header detaches. Cargo is therefore lowered in from overhead rather than driven through the doors, which suits crane operations, gantry access and top-load handling of irregular or tall freight where vertical clearance is the constraint.

Frame and walls are CORTEN anti-corrosive steel and the unit is CSC certified, conforming to international shipping and structural standards. It is intended for contractors, recyclers and logistics teams that handle high-clearance equipment or non-standard freight.

Dimensions and Ratings

• External dimensions: 6.058 m × 2.438 m × 2.591 m
• Internal dimensions: 5.898 m × 2.332 m × 2.373 m

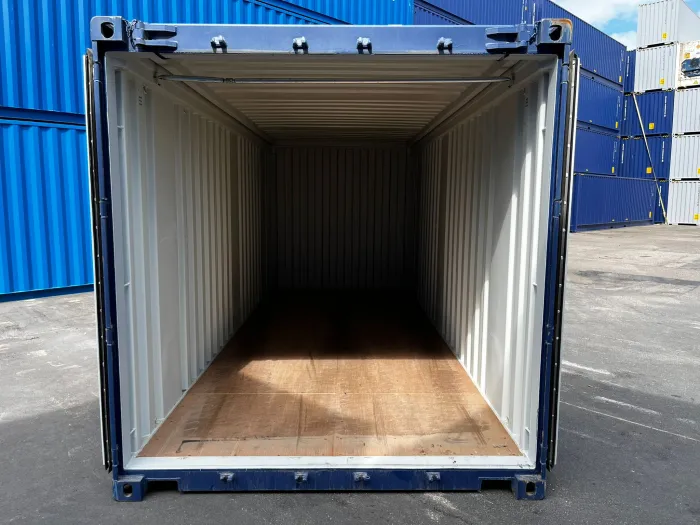

• Door opening: 2.338 m W × 2.262 m H
• Internal volume: 32.60 m³
• Tare weight: 3,390 kg
• Max payload: 27,090 kg
• Max gross weight: 30,480 kg

Every figure above sits within ISO standards, and the unit is fully intermodal compatible.

Construction

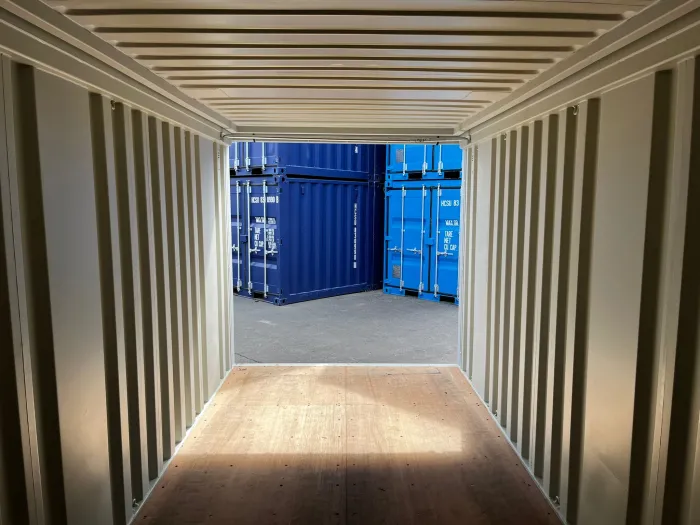

• Removable steel roof. Opens the whole top face to crane-loading: heavy machinery, pipe sections, industrial castings and non-palletized cargo.
• Detachable door header. Additional vertical entry clearance at the front opening, allowing tall-frame lifting equipment or bulk insertions.
• CORTEN steel frame and walls. Weather-resistant steel construction for long-term duty in outdoor, cross-border or industrial yard environments.
• Marine-grade plywood flooring. A durable, load-bearing interior floor. Optional full steel flooring is available on request for abrasive or high-impact loads.
• Forklift pockets. Integrated base slots for safe maneuvering by forklift in warehouse, dock or job site conditions.
• Lockbox and vents. An internal lockbox keeps stored goods tamper-resistant. Wall vents hold moisture down inside the box, in transit and in long-term static use.
• Exterior coating. Standard finish in RAL 5013 Cobalt Blue, with alternative RAL color coatings available on special request. UV- and abrasion-resistant paint system.

Typical Loads and Sites

• Heavy equipment and machinery. Non-palletized cargo loaded top-down: motors, generators, turbines and engine blocks, where side-door access is impractical.
• Structural steel and pipe. Steel tubes, rods, rebar bundles and construction-grade pipe materials that need straight vertical placement.
• Waste and scrap management. Bulk debris, scrap metals and recyclable materials loaded by crane from above, with reinforced containment during transport.
• High-clearance job sites. Construction and fabrication sites running non-standard cargo, quick turnarounds or vertical handling workflows.

Certification and Compliance

• CSC certified. Approved for international shipping and global intermodal use.
• ISO corner castings. Standardized for stacking, securing and container handling systems.
• Inspection ready. Each unit is inspected before dispatch for full structural integrity, roof detachability and door alignment.

In stock and ready for dispatch. Inspection photos and customization options are available on request.
