20FT High Cube Hard Open Top Container – Steel Floor

A 5/7 mm welded checker plate steel floor defines this unit. The surface is liquid-tight, takes direct load pressure and contains fluid spills, and it can be welded and anchored to without added reinforcement. Above it sits a removable steel roof and high cube vertical clearance.

That combination covers goods loaded from above, crane or hoist access, and installations both static and mobile where structural integrity and spill protection decide the specification.

Dimensions and Capacity

• External dimensions (L×W×H): 6.058 m × 2.438 m × 2.896 m
• Internal dimensions (L×W×H): 5.898 m × 2.332 m × 2.677 m
• Door opening (W×H): 2.338 m × 2.567 m
• Roof opening (L×W): 5.570 m × 2.210 m
• Internal volume: 36.80 m³
• Tare weight: 3,220 kg
• Max payload capacity: 27,260 kg
• Gross weight rating: 30,480 kg

Build Sheet

• Container type: 20FT High Cube Hard Open Top
• Material: CORTEN anti-corrosive steel
• Flooring: 5/7 mm welded checker plate steel
• Roof: steel removable roof with full access
• Header beam: detachable for tall cargo clearance
• Ventilation: standard passive air vents
• Security: integrated lockbox for padlock use
• Certification: ISO and CSC certified
• Finish: RAL 3002, custom colors by request
• Stackable: yes, intermodal compliant

What the Structure Gives You

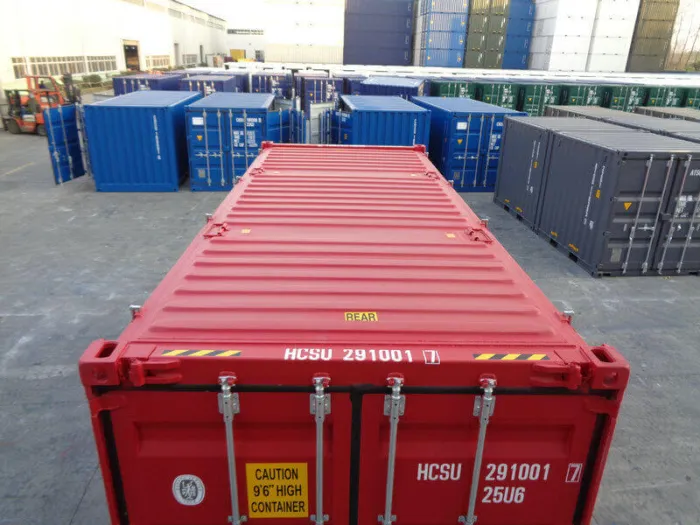

• Removable steel roof. Opens the top face to crane access for cargo loaded from above or equipment lifted in vertically.
• Welded steel checker plate floor. 5/7 mm thick and liquid-tight, capable of withstanding direct load pressure and containing fluid spills.
• High cube design. Additional vertical clearance for machinery, pallets or built-in modifications that will not fit a standard-height unit.
• ISO corner castings and CSC certification. Global intermodal transport, crane handling and secure stacking without modification.
• Detachable door header beam. Expands rear entry space for tall or irregularly shaped items.

Industrial Use Cases

Oil and chemical transport

The leak-resistant steel floor suits storage or transport of IBCs, drums and containers holding oil, lubricants or corrosive chemicals.

Equipment loading and crane access

Generators, engines, hydraulic units and heavy industrial machinery placed from above, by overhead crane or by extended-reach forklift.

On-site workstations and mobile shops

Steel flooring allows direct welding, anchoring and structural adaptation without reinforcement, which supports mobile mechanical bays and custom workshop builds.

Export logistics and oversized freight

Meets ISO and CSC requirements for global shipping, and handles specialized cargo needing open-top loading and high structural tolerance.

Fabrication, branding and architecture

A common base for converted container installations, open-top architectural displays, demo booths and pop-up retail spaces.

Available for immediate deployment. Delivery and color customization options are available on request.
