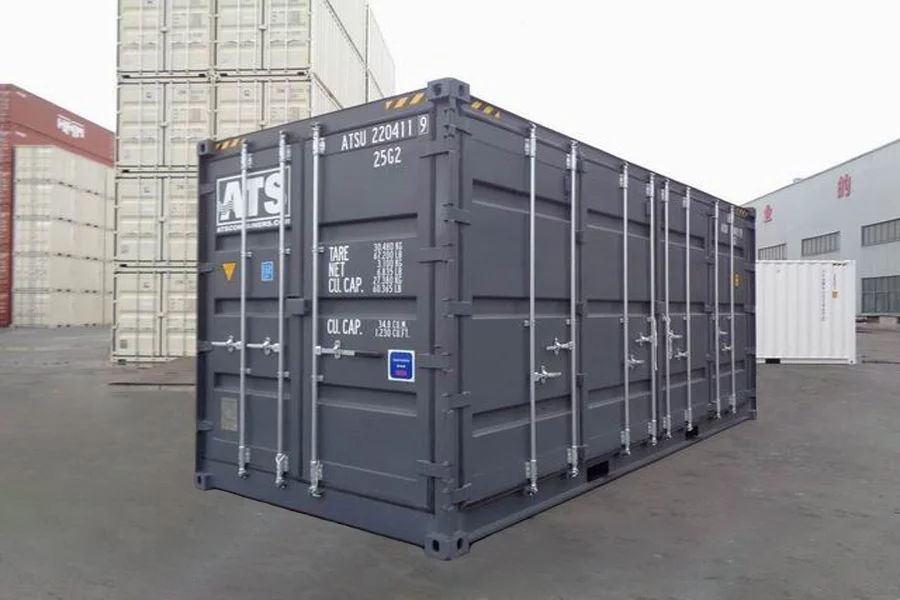

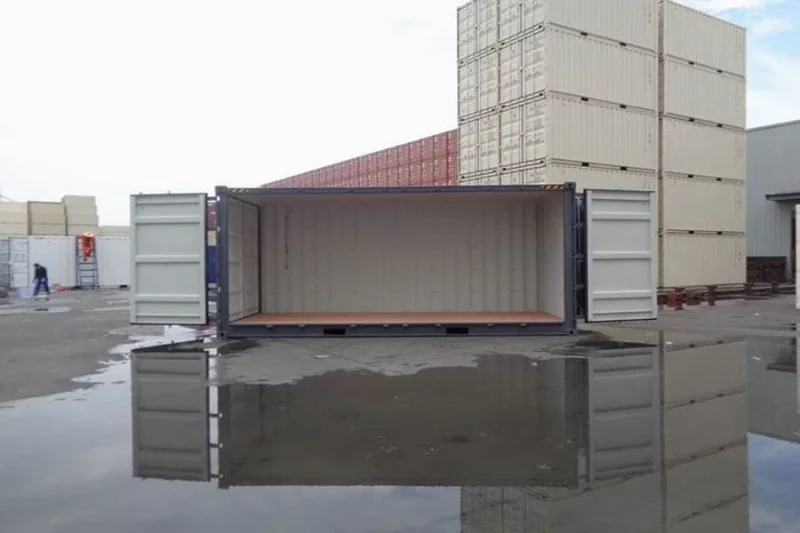

20FT High Cube New Open Side Shipping Container

Supplied new, built to one-trip standard, and fabricated from CORTEN marine-grade steel. The unit combines full-length side doors with rear swing doors, so entry for loading, display or conversion work is not limited to one end.

Side-loading access reaches nearly the entire container length. High cube height adds clearance above a standard 20ft box, and the design allows rapid deployment and secure use across logistics, modular construction and high-visibility applications.

Construction

• Primary material: marine-grade CORTEN steel, rust-resistant and anti-corrosive

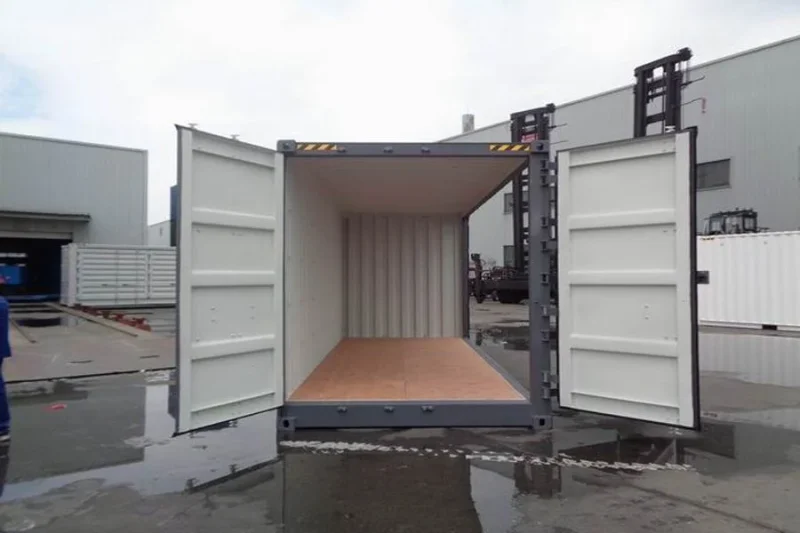

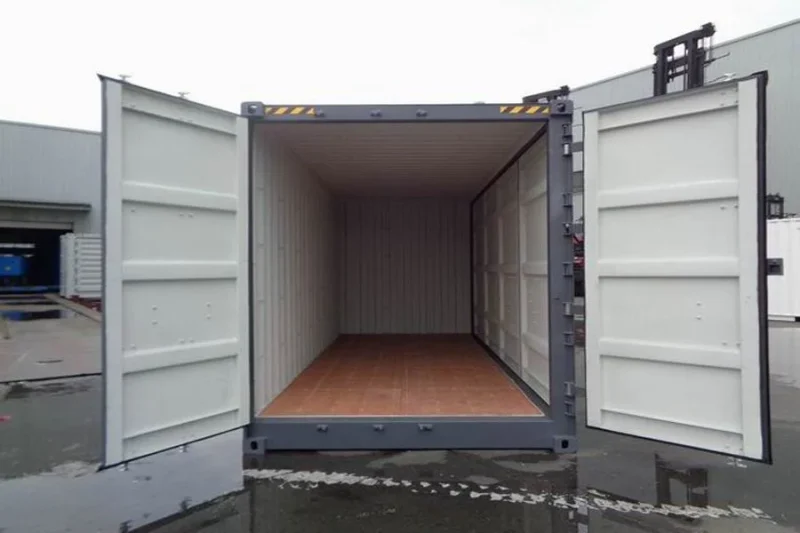

• Flooring: marine plywood, 28mm, 19-ply Keruing-Apitong, strong and moisture resistant
• Ventilation: 9 passive vents, holding internal humidity down and keeping air moving

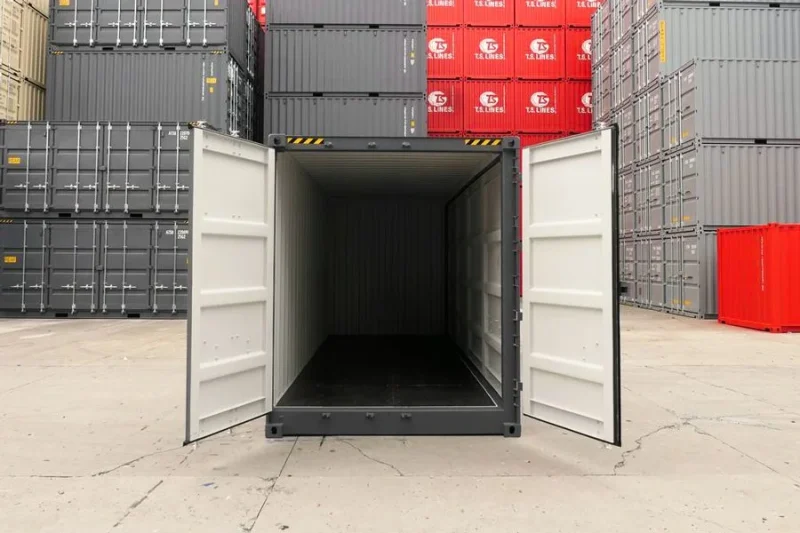

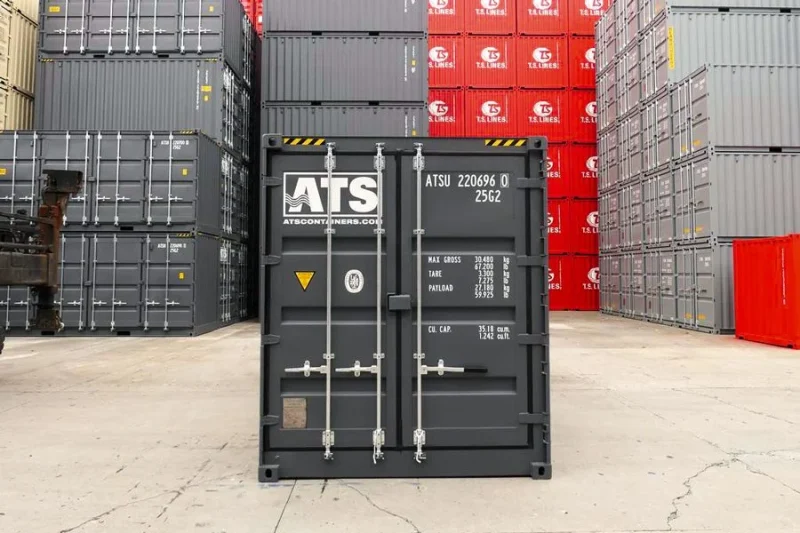

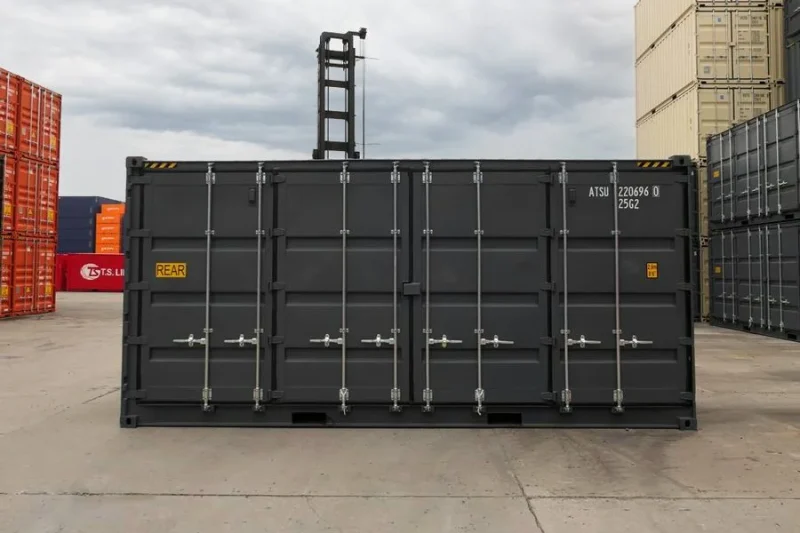

• Doors: rear swing doors carrying 36” locking bar handles; full-length side-opening doors running reinforced steel locking gear
• Security: built-in steel lockbox at the rear
• Handling: ISO forklift pockets for balanced, secure lifting
• Frame: ISO-standard, suitable for intermodal, rail or static use

Technical Specification

• External dimensions (L × W × H): 20’ × 8’ × 9’6”
• Internal dimensions (L × W × H): 19’4” × 7’6” × 8’6”
• Rear door opening (W × H): 7’3” × 8’2”
• Side door opening (W × H): 18’8” × 8’2”
• Tare weight: 7,360 lbs
• Payload capacity: 59,840 lbs
• Gross weight rating: 67,200 lbs

Structural Highlights

• High cube build. Increased ceiling clearance for tall equipment, stacked materials or vertical builds.
• Side door access. Forklift loading, crane access and full walk-in usability.
• Marine-grade plywood floor. High-pressure resistance and long-term durability under heavy point loads.
• Reinforced hinges and frames. Withstand repeated open-close cycles without warping.
• Flat internal paneling. Suited to insulation, lining and internal finishing during modifications.

Suitability

Retail and display structures

Converts into high-visibility storefronts, walk-up displays or branded kiosks. The open face supports quick customer interaction and visual merchandising.

Event and hospitality operations

Used for outdoor bars, serving stations, ticket counters and branded promotional builds, where the side access speeds setup and teardown.

Freight and industrial storage

Supports side-loading of palletized goods or bulky items in warehouses, construction depots and rapid-access inventory stations.

Construction and field deployment

Works as an on-site mobile tool crib, materials shelter or secure equipment staging point with fast side access.

Modular conversion and custom builds

Flat walls, extra height and side access suit tiny homes, studios, mobile offices and design-forward portable spaces.

Pre-Dispatch Inspection

Every one-trip unit passes quality assurance checks for frame stability, locking mechanism performance and internal structure before dispatch. Each 20FT High Cube Open Side Container is checked for:

• Door operation. Smooth, secure opening across both rear and side panels.
• Weld integrity. Structurally checked at all hinges, corner castings and access points.
• Ventilation alignment. Sealed, weather-resistant vent systems.
• Plywood floor condition. Unblemished, with no warping or surface rot.
• Paint and exterior finish. Consistent surface with protective coating.
