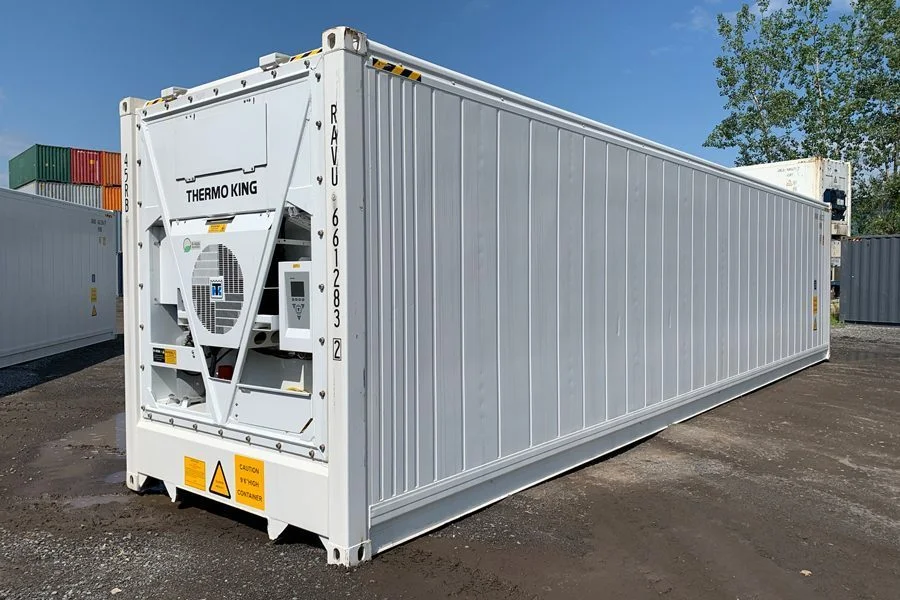

40FT High Cube New Refrigerated Shipping Container (One Trip)

Cold chain work sets the specification here. This one-trip 40FT High Cube refrigerated container runs a Thermo King Magnum Plus unit with precise temperature control from –40°C to +30°C, and it is engineered for environments where consistency, hygiene and structural durability are non-negotiable — pharmaceutical logistics, frozen food handling, disaster response and comparable work.

Marine-grade materials, premium insulation and integrated safety systems carry that performance through stationary and in-transit deployment alike.

Refrigeration Unit

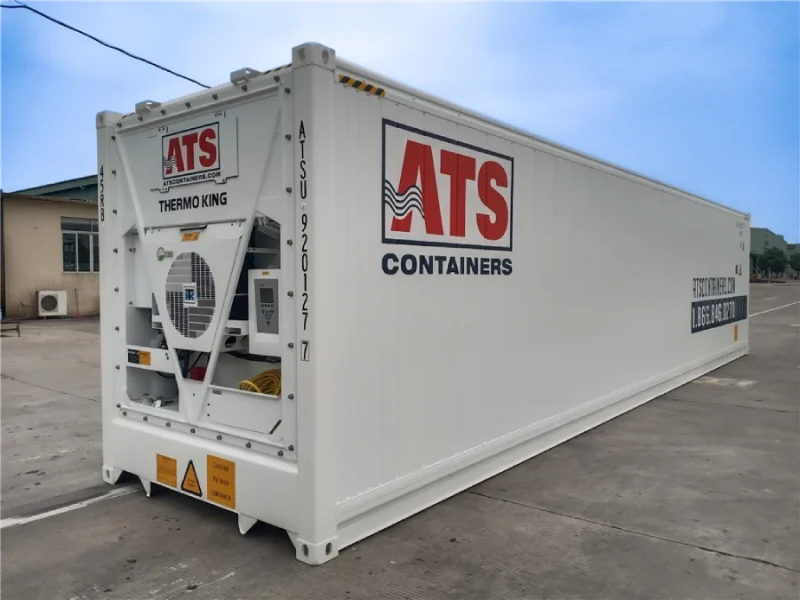

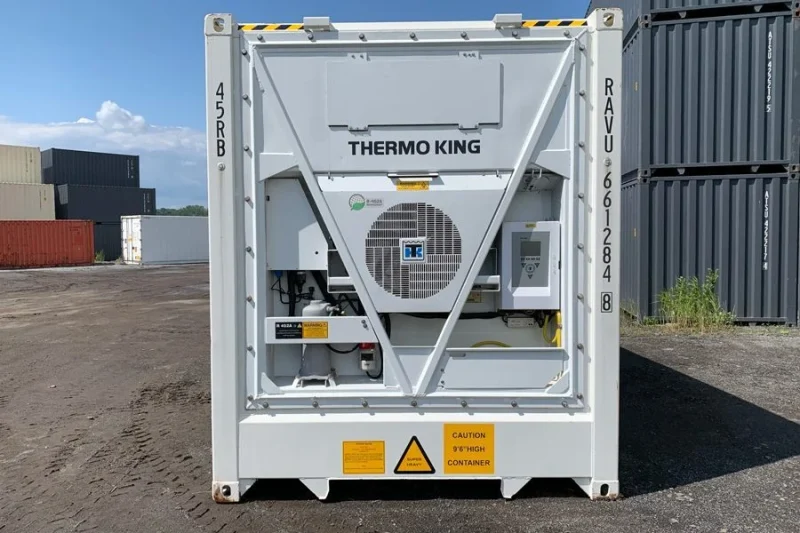

• Make and model: Thermo King Magnum Plus, with full temperature range and diagnostic suite
• Temperature range: –40°C to +30°C
• Compressor: digital scroll, corrosion-protected
• Refrigerant: R452A (low GWP)
• Accuracy: ±0.25°C control range
• Pulldown speed: high-efficiency rapid cooling
• Diagnostics: onboard digital diagnostics plus remote
• Power supply: 460V, 3-phase, 30-amp circuit
• Power cable: 50 ft included

The Magnum Plus system provides consistent load performance, with field-serviceable components and global support infrastructure behind it. The container is pre-tested and delivered ready for plug-in operation.

Interior, Fittings and Safety

• Condition: One trip / New

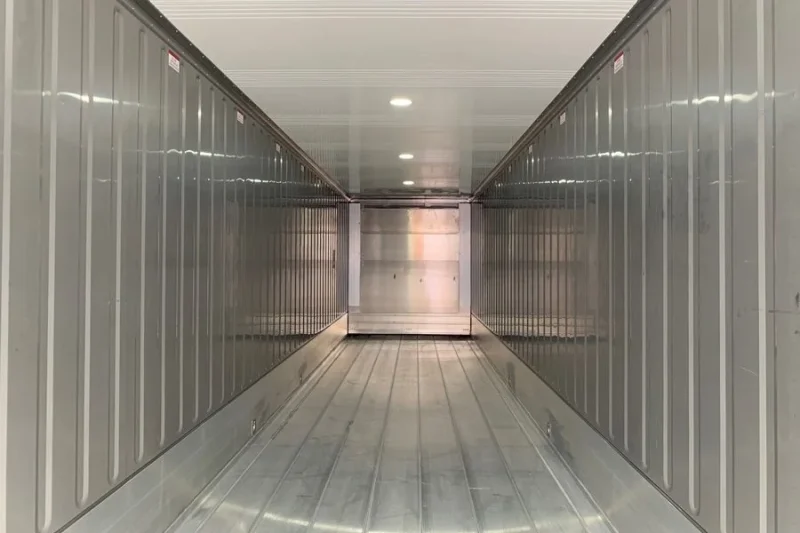

• Interior: food-grade stainless steel with aluminum composite lining
• Exterior: corrosion-resistant marine-grade steel finish
• Insulation: high-density polyurethane for consistent thermal protection
• Drainage: four automatic floor drains (2 front, 2 rear)
• Flooring: flat aluminum floor with aluminum scuff liner

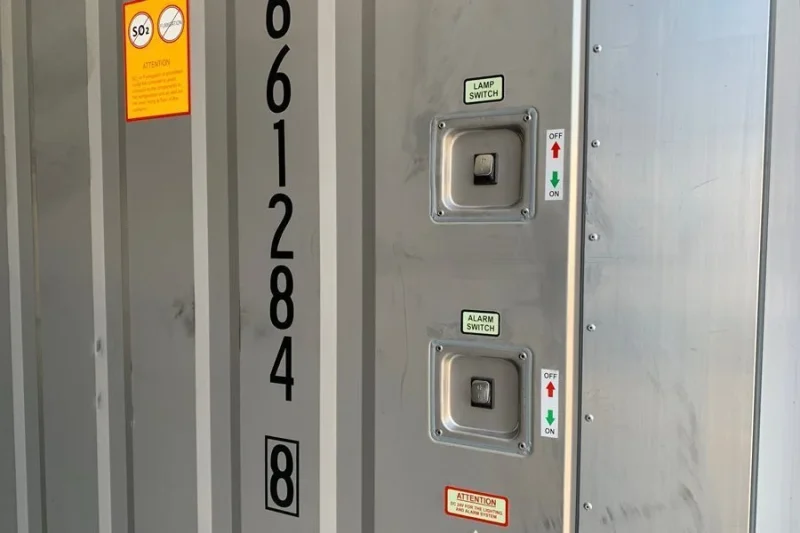

• Lighting: LED lighting system with interior switch

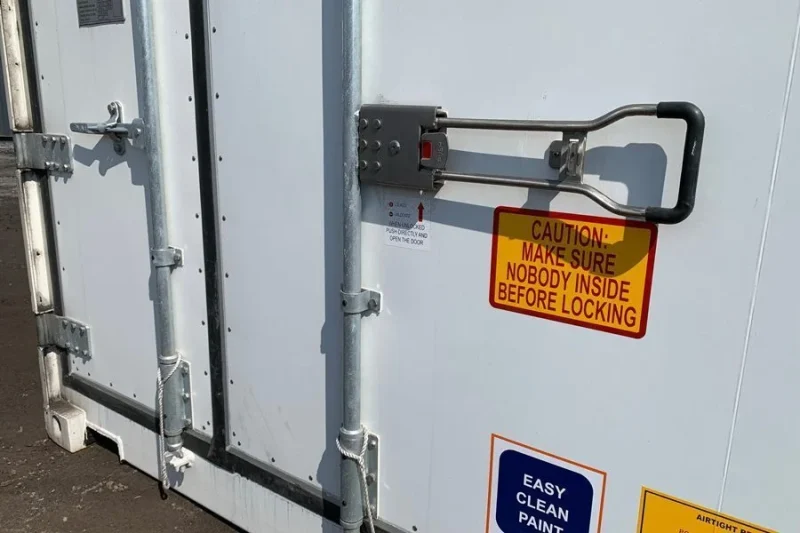

• Safety systems: emergency door release, panic alarm and thermal curtain
• Power: 460V, 3-phase, 30-amp circuit, 50-ft power cable included

Container Dimensions

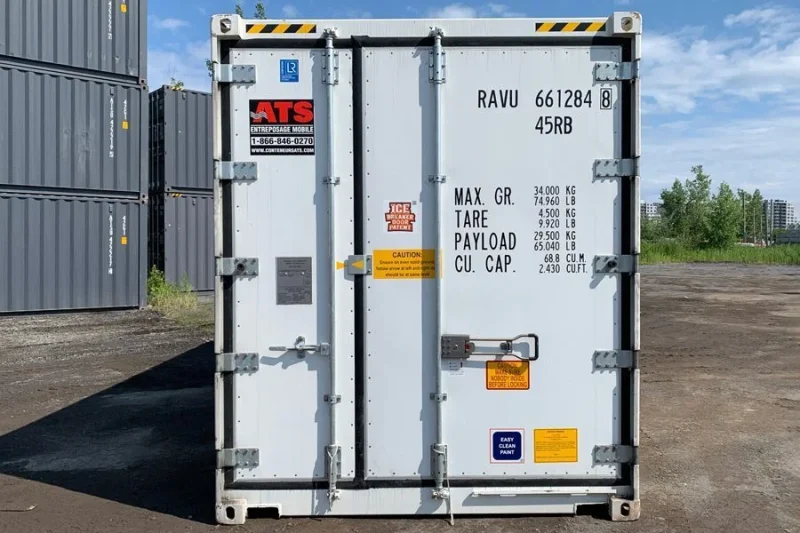

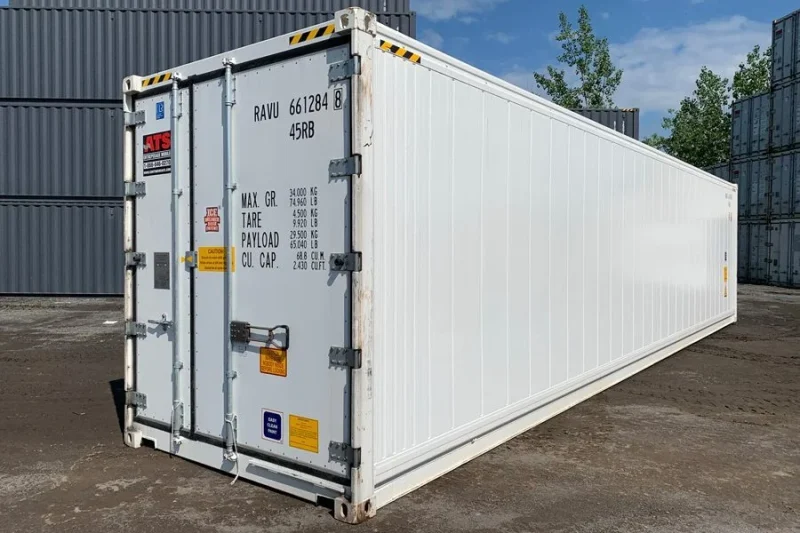

• External dimensions (L×W×H): 40′ × 8′ × 9′6″
• Internal dimensions (L×W×H): 38′ × 7′6″ × 8′6″
• Door opening: 7′6″ W × 8′4″ H
• Tare weight: 9,920 lbs
• Max payload: 65,040 lbs
• Gross weight: 74,960 lbs

Note: insulation thickness may slightly reduce usable cubic volume.

Structural and Mechanical Detail

• Marine-grade steel cladding stands up to coastal and humid conditions
• Polyurethane insulation keeps thermal variance low across the system
• Interior surfaces are built to comply with food-grade and medical hygiene protocols
• The thermal curtain holds internal temperature while a door is open
• LED lighting and the safety fittings meet global standards and improve day-to-day usability
• Self-closing drains stop water pooling and make sanitization easier

Before dispatch, every unit is fully tested and inspected — performance under load included, along with thermal cycling across the rated temperature range.

Cold Chain Applications

Pharmaceutical and vaccine logistics

Holds ultra-low temperatures for biologics, vaccine distribution under WHO protocol requirements included.

Seafood and frozen goods distribution

Processing, freezing and mobile warehouse operations in food industries with strict compliance needs.

Disaster response and emergency operations

Deployed by field hospitals, military logistics teams and emergency responders for mobile refrigerated supply storage.

Agricultural and remote processing

Cold staging areas for meat, produce and dairy on off-grid farming operations.

Event and retail use

Serves as a walk-in freezer or cold room for pop-ups, large-scale catering events or short-term grocery expansions.

Pre-Dispatch Verification

Each container is tested and quality-checked for:

• Refrigeration capability under full load
• Door seal integrity and locking mechanism
• Digital diagnostics verification
• Drainage system inspection
• Floor and insulation continuity
• LED lighting functionality

Units are delivered fully operational and ready to connect to a compatible power supply.
