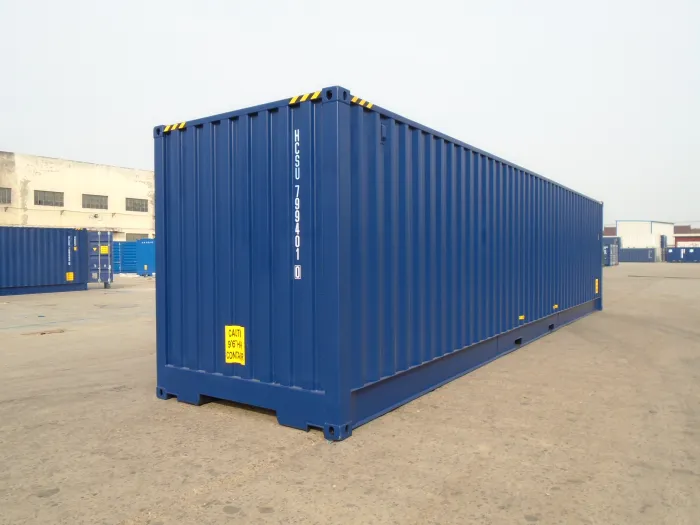

40FT High Cube Open Side Container

The full length of one side opens. Alongside standard rear cargo doors, this 40FT High Cube carries a full-length side-opening system, delivering maximum accessibility and internal volume for loading efficiency and oversized cargo handling in commercial, construction, logistics and modular conversion environments.

The shell is anti-corrosive CORTEN steel and the container is fully CSC certified, which gives the structural reliability and ISO compatibility that static and intermodal deployment both require.

Dimensions and Weights

• External dimensions (L × W × H): 12,192 × 2,438 × 2,896 mm
• Internal dimensions (L × W × H): 12,032 × 2,430 × 2,471 mm
• Rear door opening (W × H): 2,358 × 2,388 mm
• Side door opening (W × H): 11,556 × 2,311 mm
• Internal volume: 72.20 m³
• Tare weight: 6,580 kg
• Maximum payload: 23,900 kg
• Gross weight rating: 30,480 kg

Construction Detail

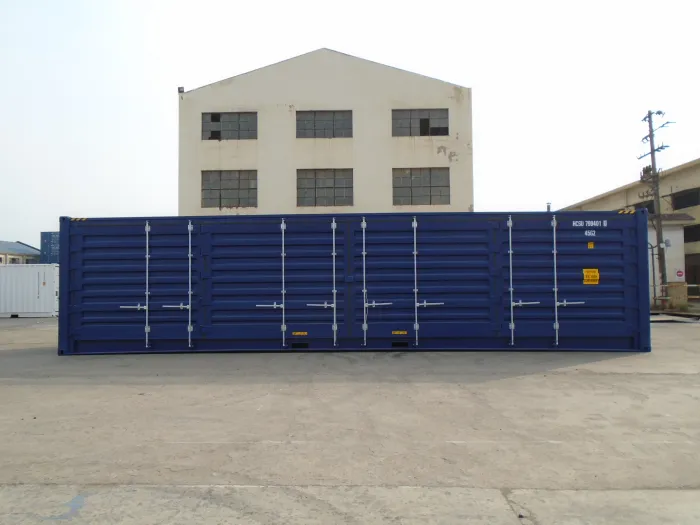

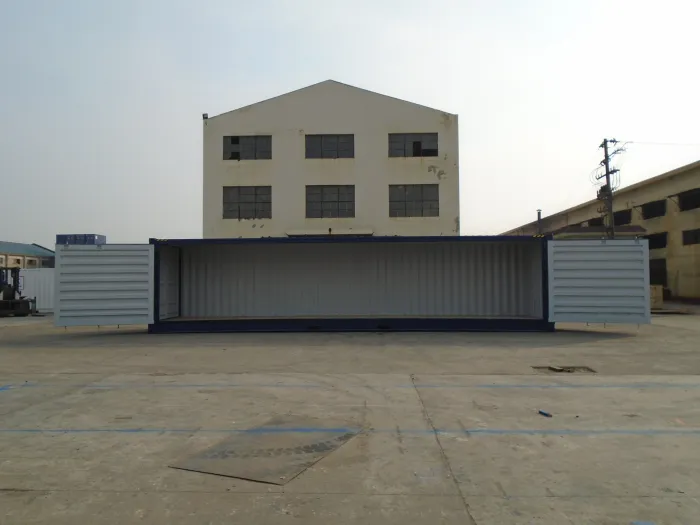

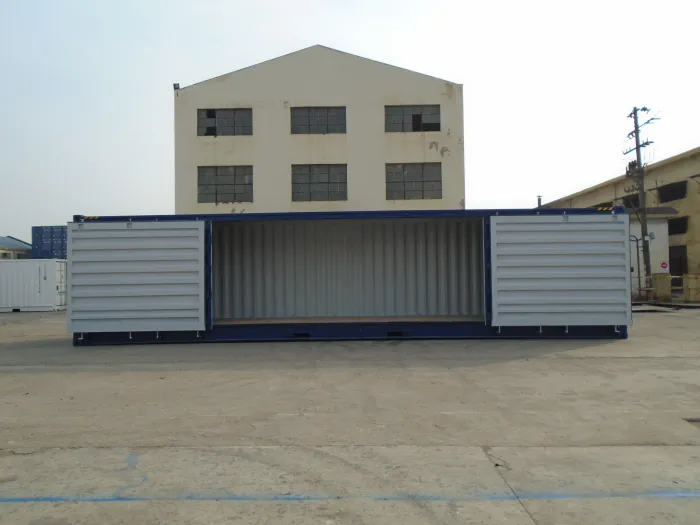

Full-length side access doors

Swing-out panels with reinforced hinges and vertical locking bars, sized for wide or irregular cargo loading.

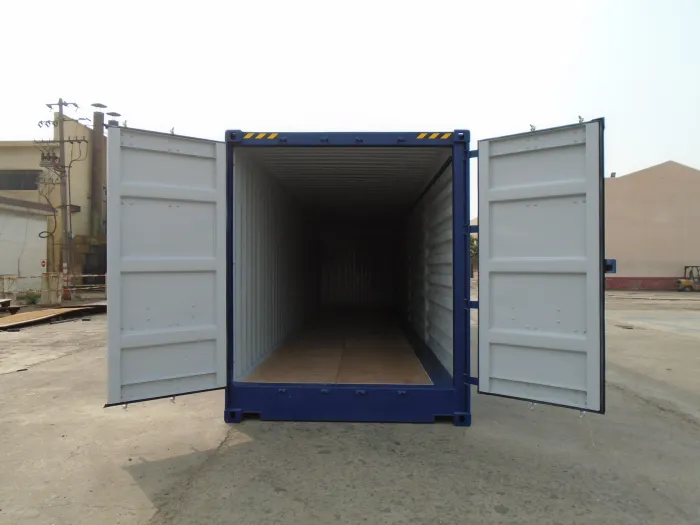

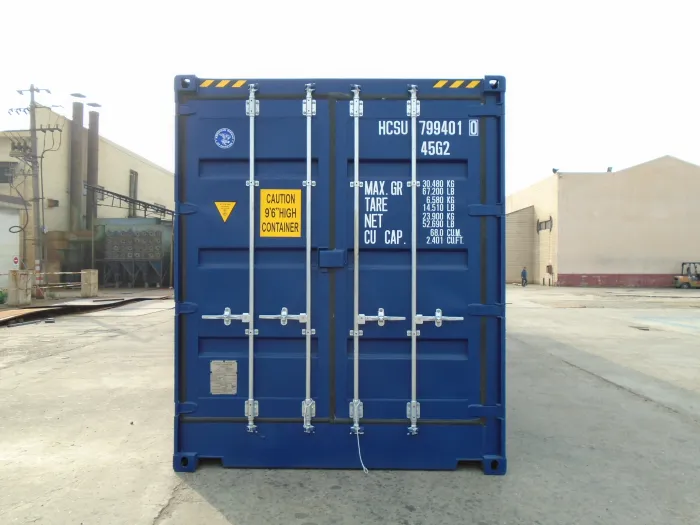

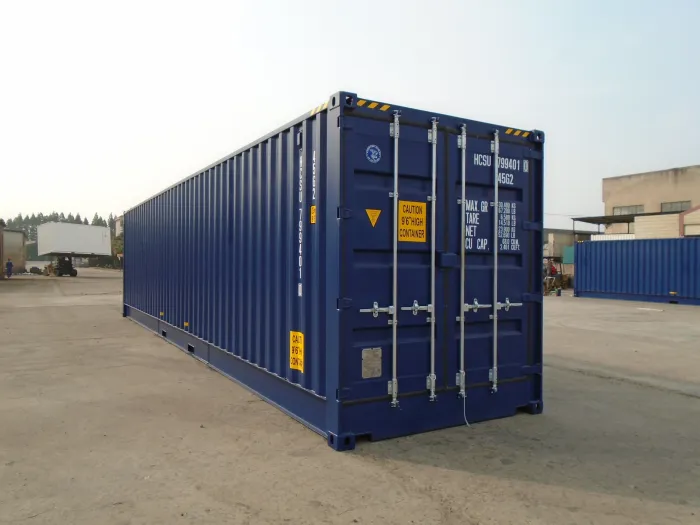

Rear double cargo doors

Standard ISO-specified doors with lockable handles and compression gaskets for weather resistance.

Shell construction

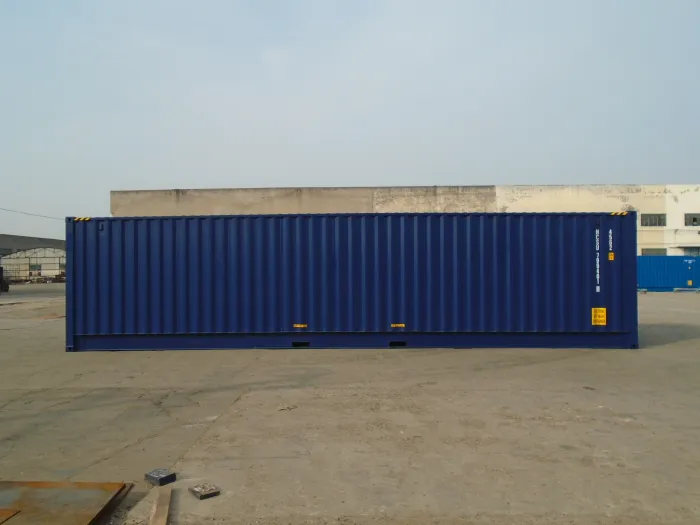

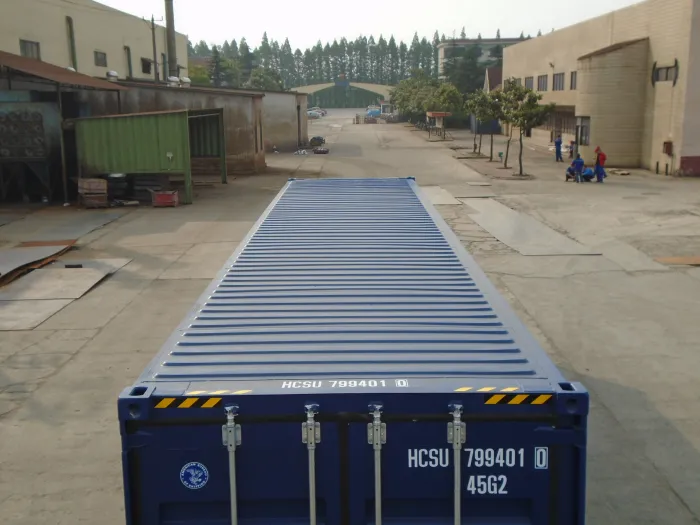

All-weather CORTEN steel, corrugated walls and roof, with ISO corner castings for intermodal compatibility.

Flooring

Forklift-ready marine-grade plywood fixed to steel cross-members, sealed for moisture resistance and surface integrity.

Ventilation

Passive airflow through built-in air vents maintains interior air circulation in varying climates.

Security

Integrated lockboxes on rear and side doors take standard padlocks for tamper resistance.

Handling compatibility

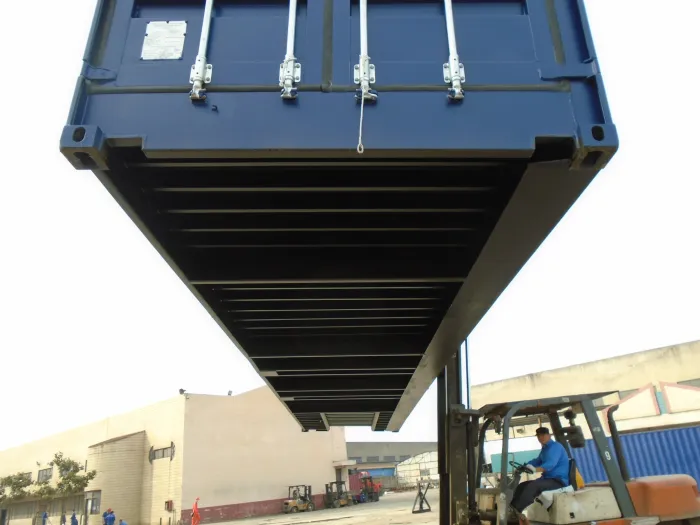

Two-way forklift pockets for maneuverability, ISO corner castings for stacking and crane lifting.

Paint finish

RAL 5013 Blue by default; custom RAL color options available upon request.

Certification and Structure

• Every container is CSC plated, certified for international shipping
• Wind-rated, reinforced side doors keep structural consistency
• The floor is sealed and fastened down onto the steel underframe
• Corrugated reinforcement through roof and walls for long-haul durability
• ISO-compliant corner castings suit stacking, rail or sea transport

Application Areas

• Industrial equipment storage: long-form machinery, pipelines and oversized components, handled with side-loading flexibility.
• Construction site deployment: tools, fixtures and rolling materials for staged workflows; full side access speeds material retrieval and return.
• Modular conversion projects: a foundation for containerized retail units, exhibition structures, mobile clinics or wide-display installations.
• Agricultural and freight logistics: simplifies side-loading of pallets, crates or bulk materials where traditional rear-door access is limiting.
• Events, retail and displays: transforms into a walk-in venue or open-access container shop for temporary or mobile operations.

Customization Options

Custom paint finishes are available on request, as are internal modifications such as shelving, lighting and security upgrades. Containers can be tailored to modular applications or to industry-specific configurations.
